This is the entire vehicle out on the ice during one of our last trial runs.

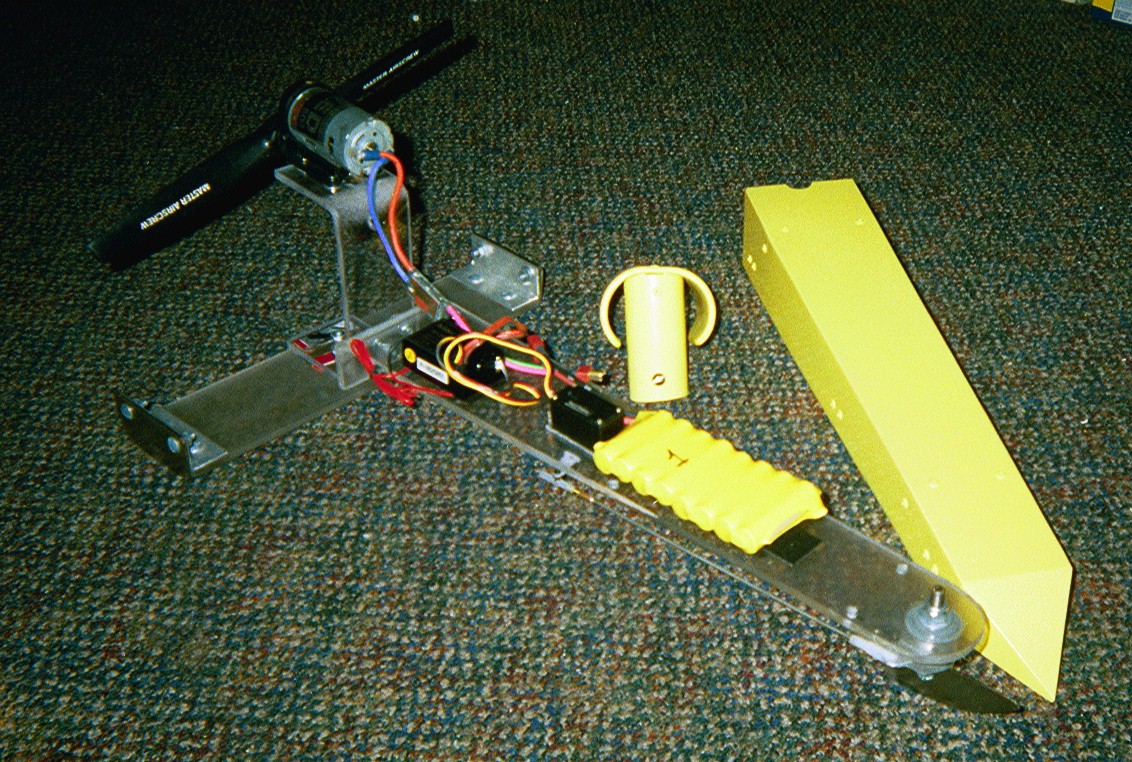

All the pieces from another angle.

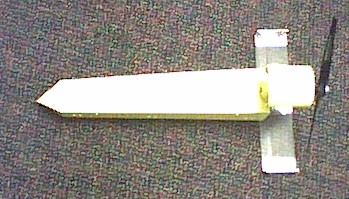

This is the assembled vehicle. By the time we were done, the runner board was also painted yellow, and the hood and cowling had a flame job. Unfortunately I don't have a picture of that.

You can see the front pivot here. Also note the extremely low clearance of the rear runners. We needed to get our center of gravity down as far as possible.

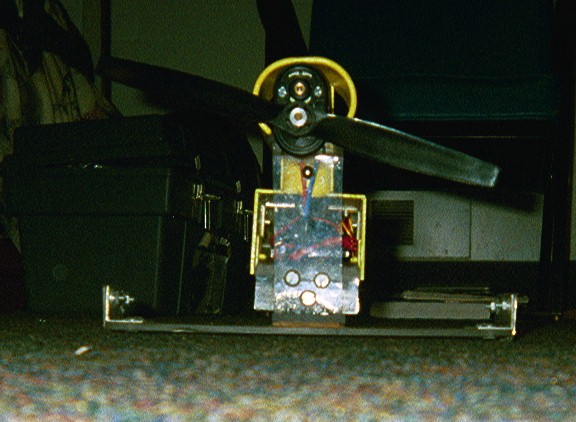

Its kind of dark, but this is the full machine from behind. As you can see everything attaches to the vertical piece of plexiglass. You can also see where the motor power cabled run behind the cowling.
